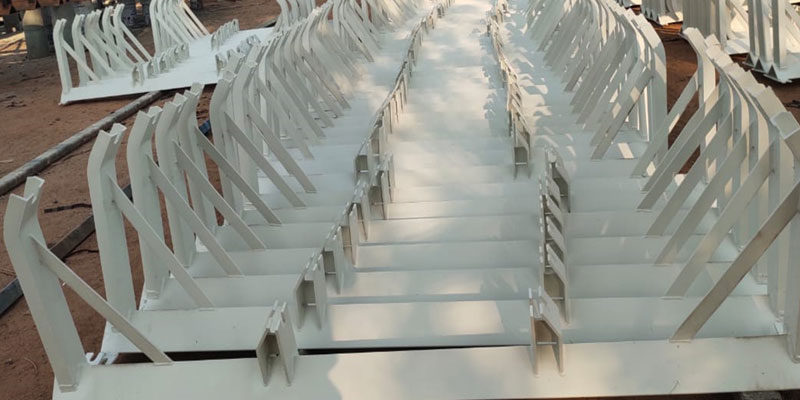

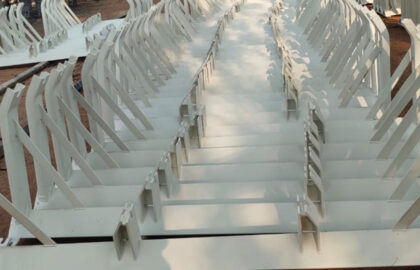

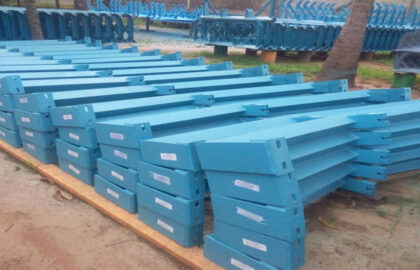

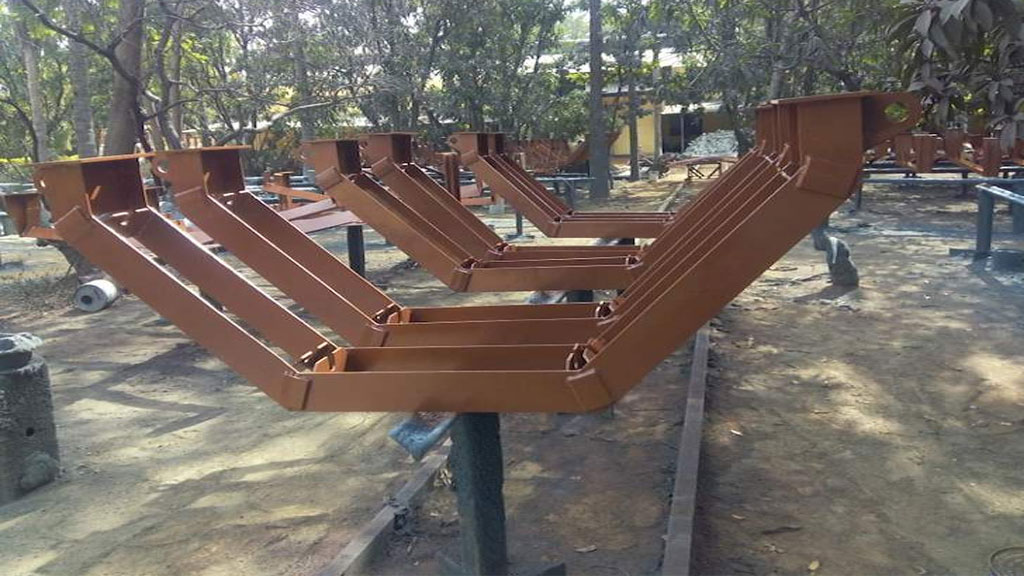

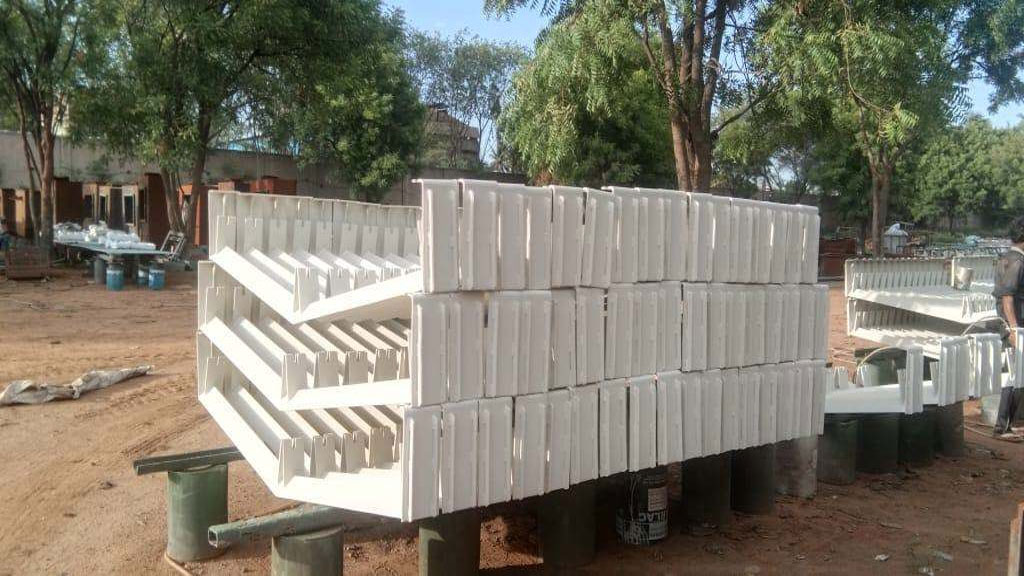

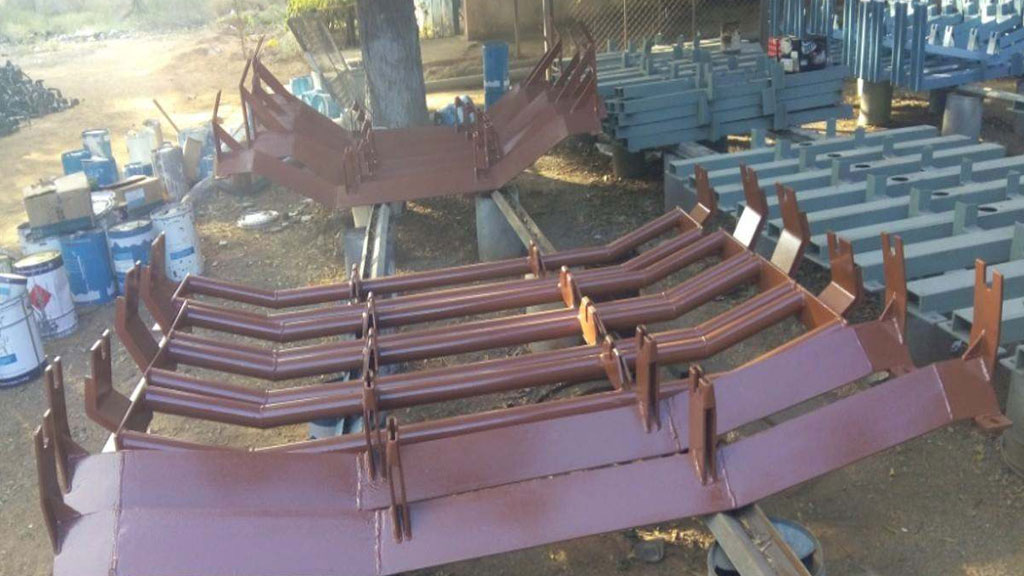

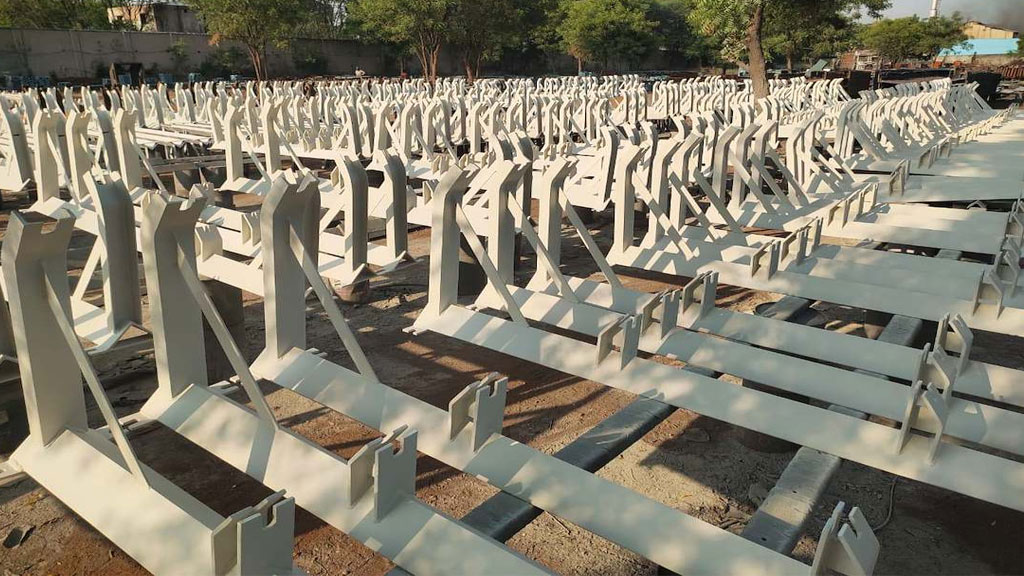

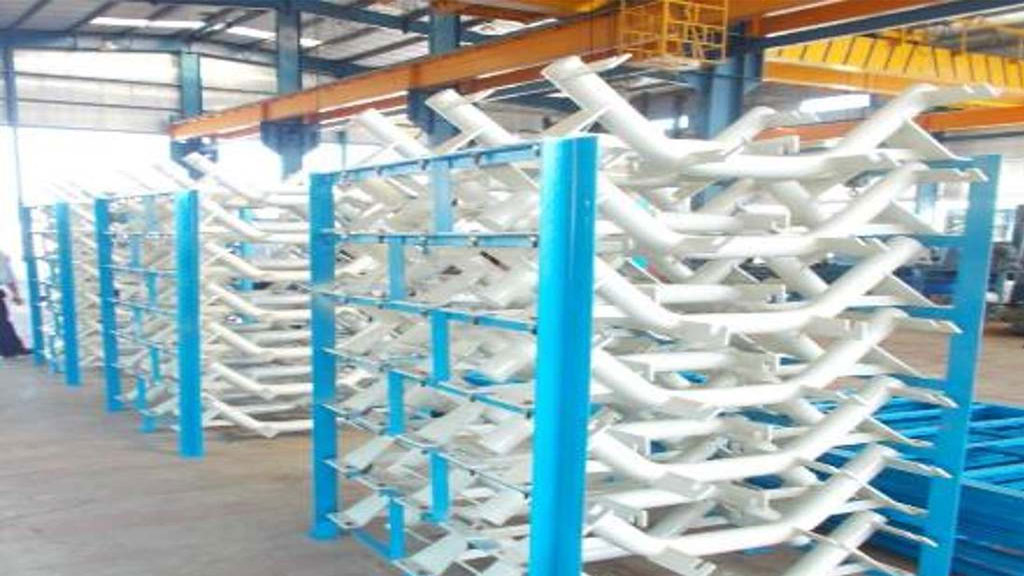

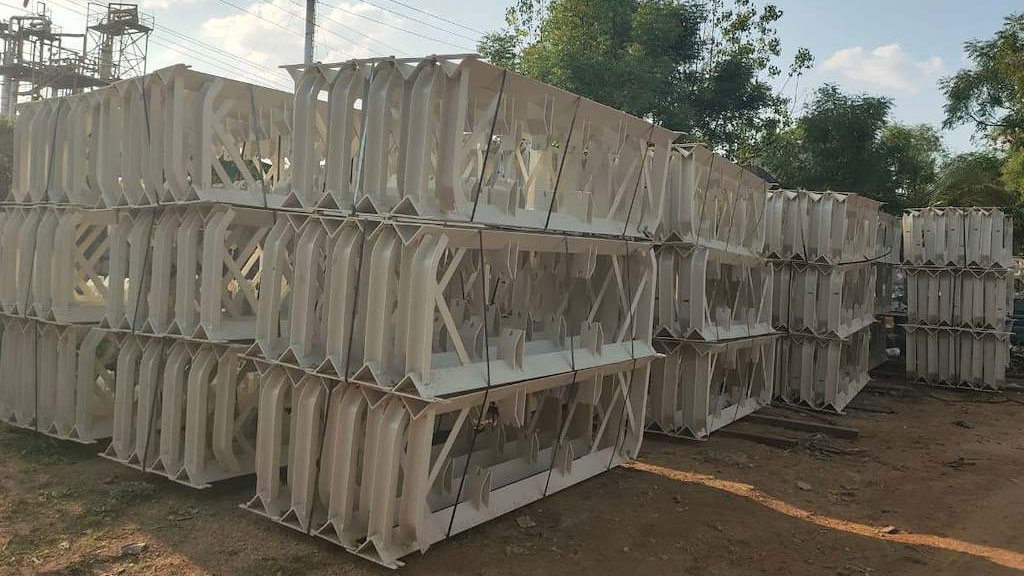

Idlers / Rollers & Frames
Precision Engineered for Reliable Conveyor Performance

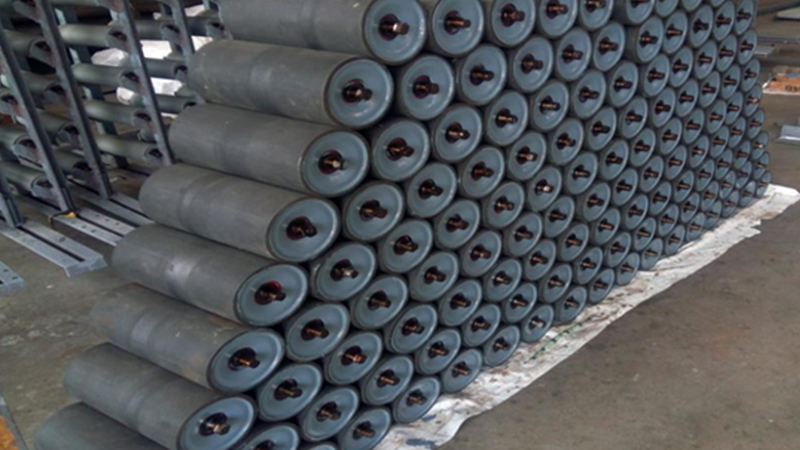

ROLLWELL Conveyor Idlers and Rollers are engineered to deliver superior reliability, smooth operation, and extended service life for bulk material handling systems. Recognising the critical role of idlers in conveyor performance, ROLLWELL focuses on precision manufacturing, advanced sealing technology, and stringent quality control to ensure reduced power consumption, minimised belt wear, and enhanced conveyor availability.With over 40 years of engineering and manufacturing expertise, ROLLWELL manufactures a comprehensive range of conveyor rollers and
dlers for Steel, Cement, Mining, Ports, Thermal Power, Coal Washeries, Fertilisers, Chemicals, and other industries worldwide.
Designed for continuous-duty operation, ROLLWELL Idlers deliver reliable performance with service life up to 60,000 operating hours.
Range of Conveyor Idlers
ROLLWELL manufactures a complete range of idlers including:

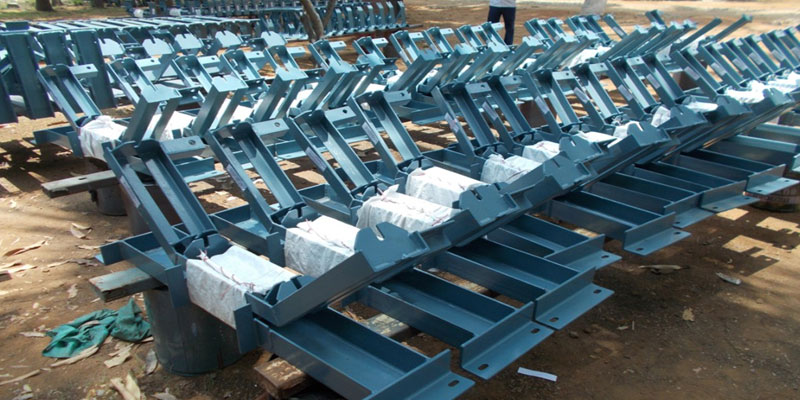

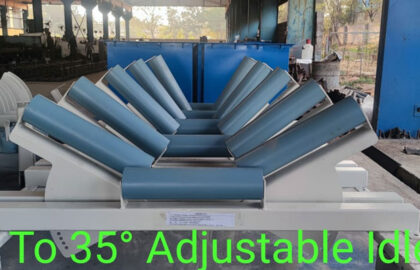

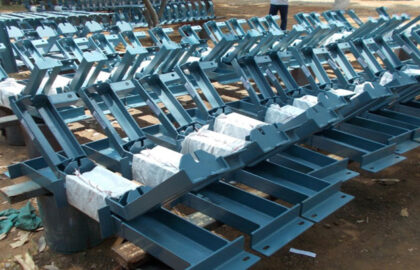

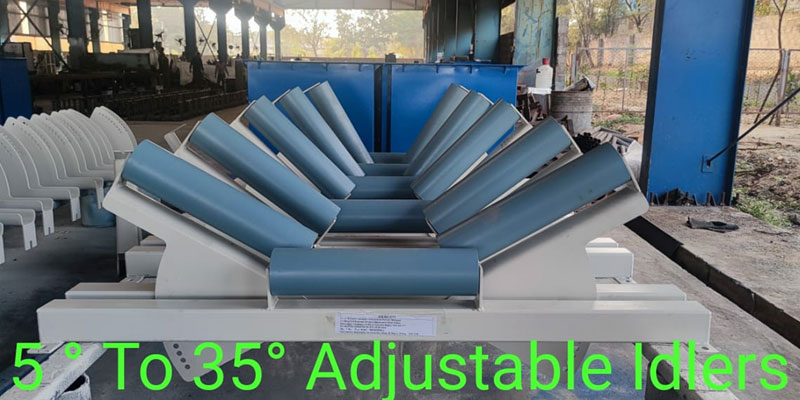

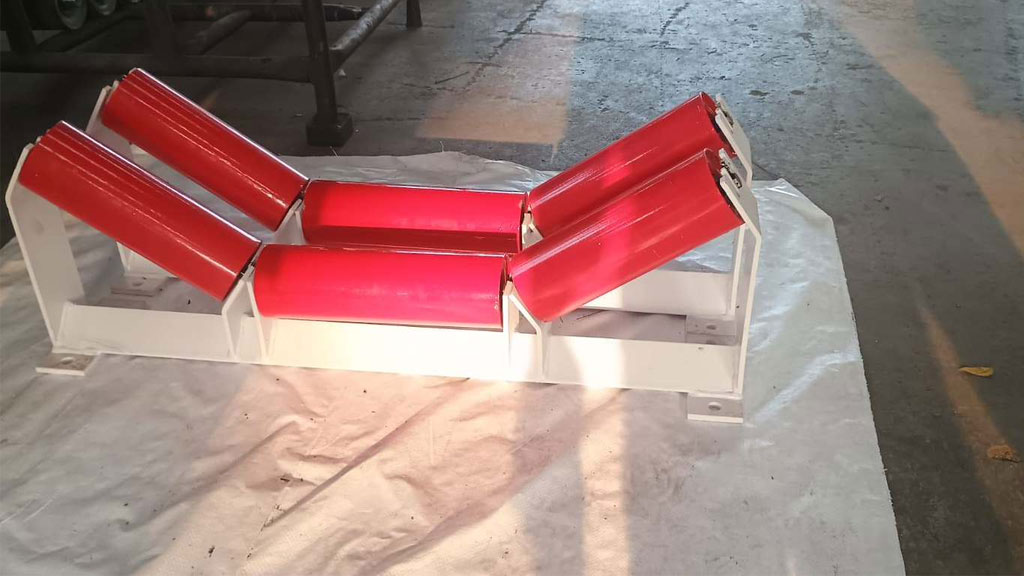

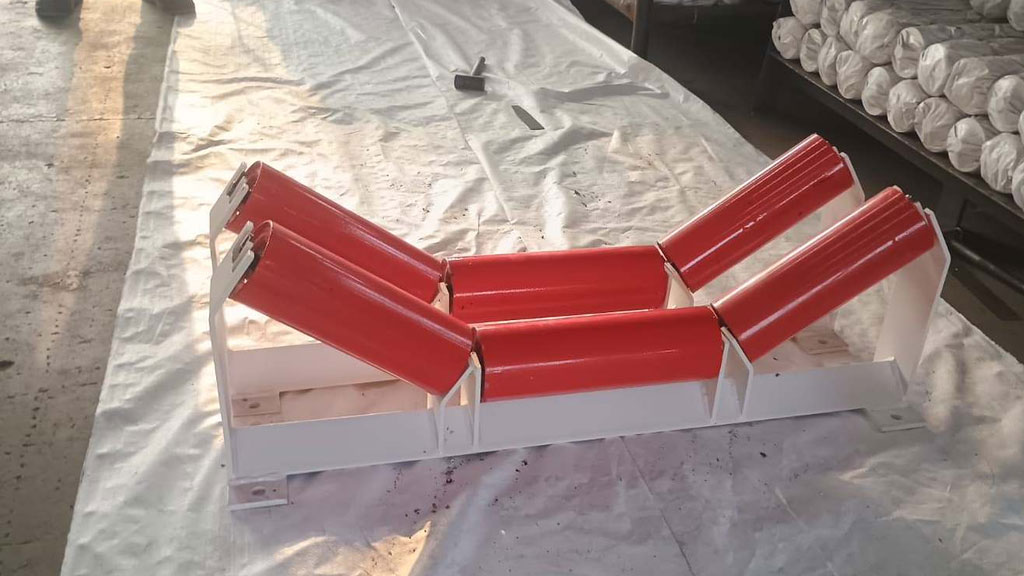

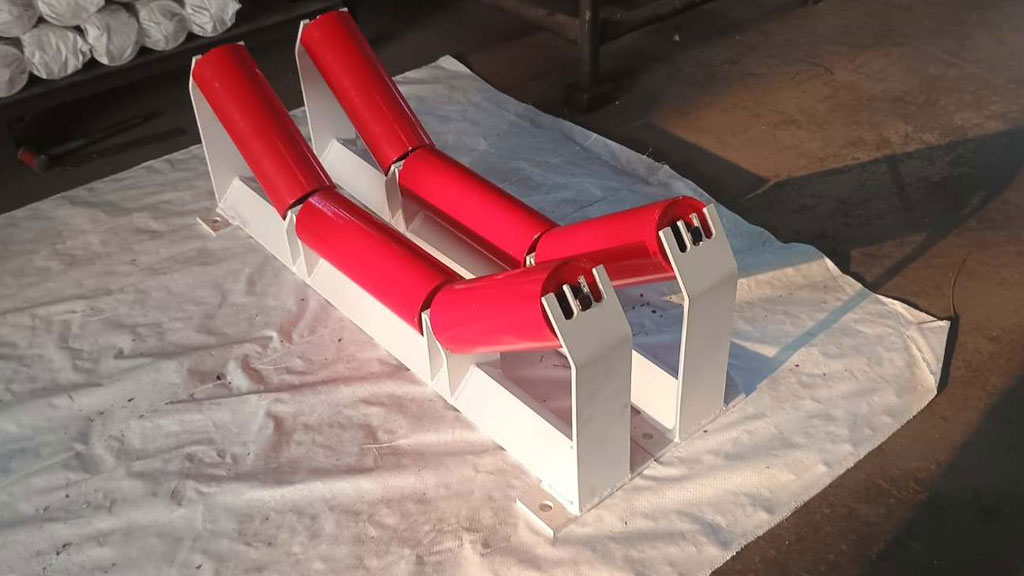

- Troughing Carrying Idlers
- Flat Carrying Idlers

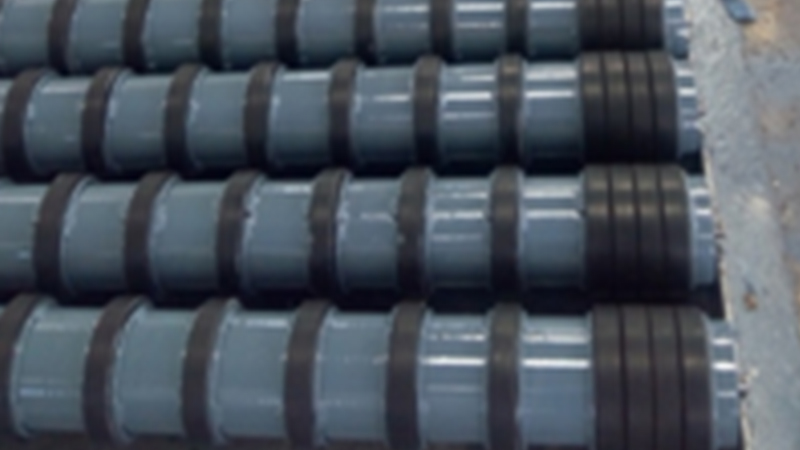

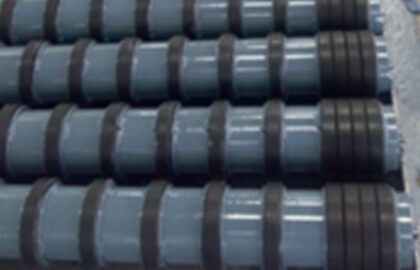

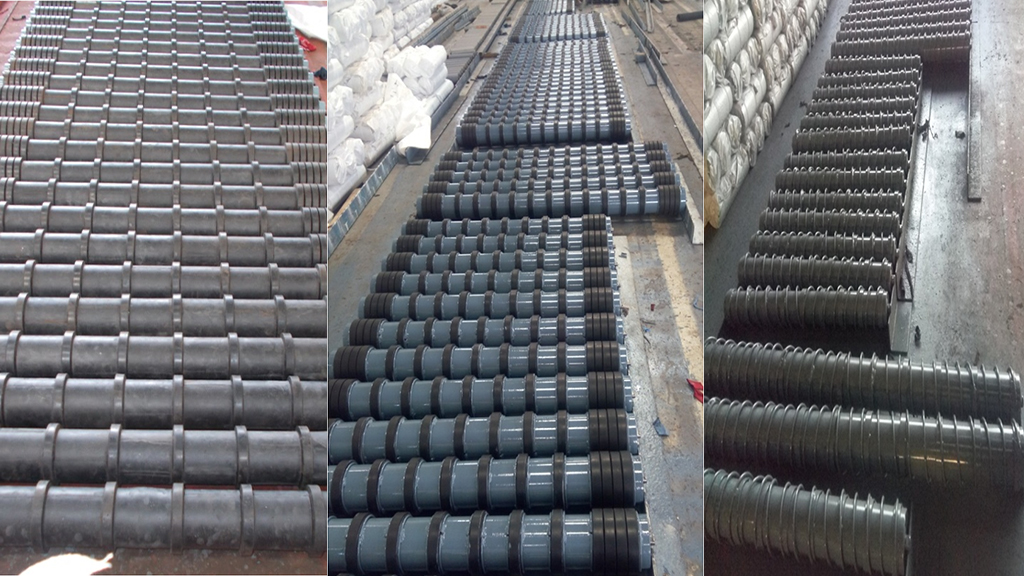

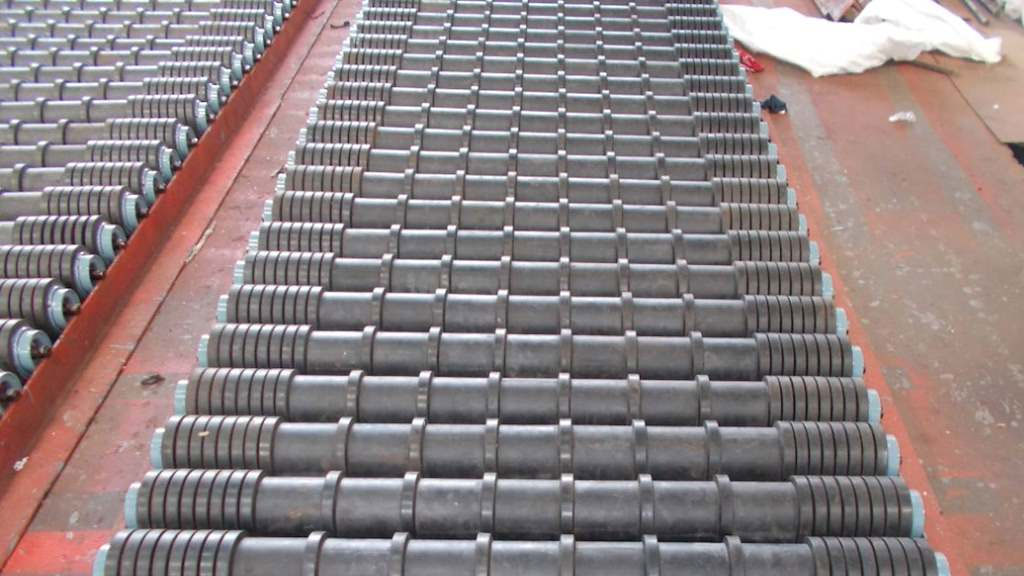

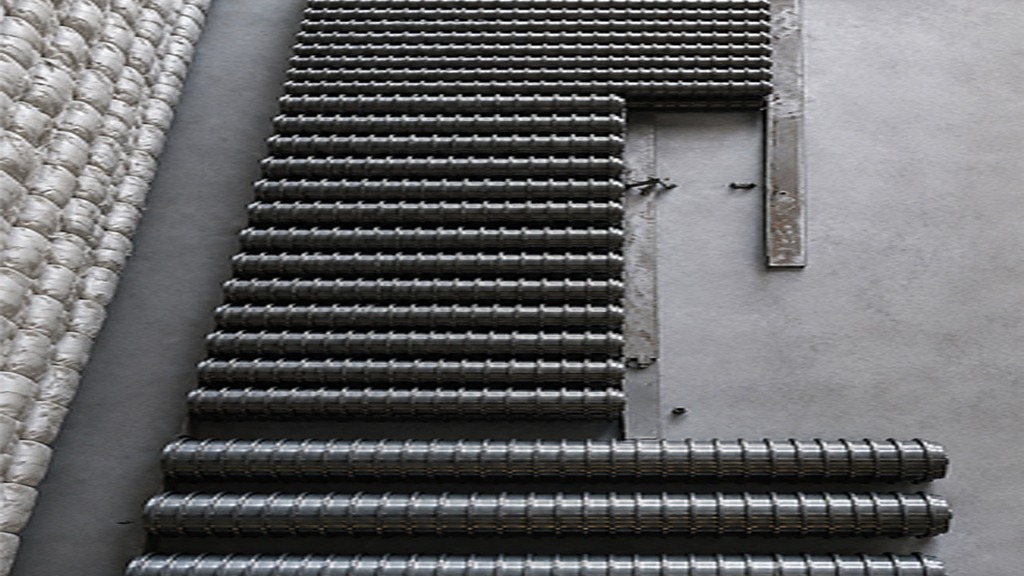

- Impact Idlers

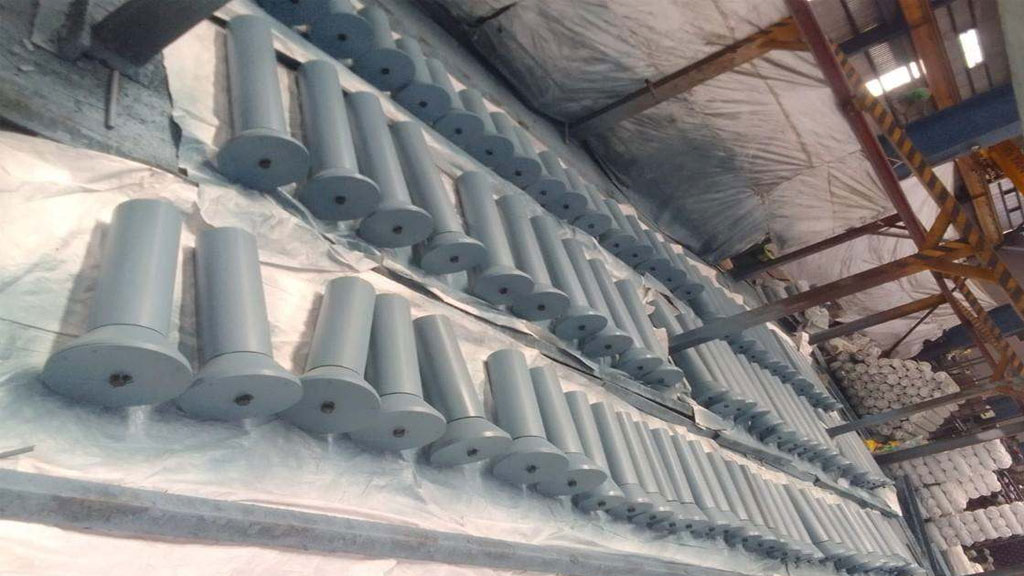

- Self-Aligning Carrying & Return Idlers
- Flat / V-Type Return Idlers

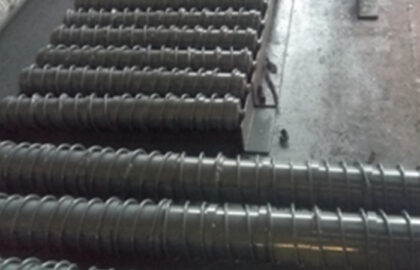

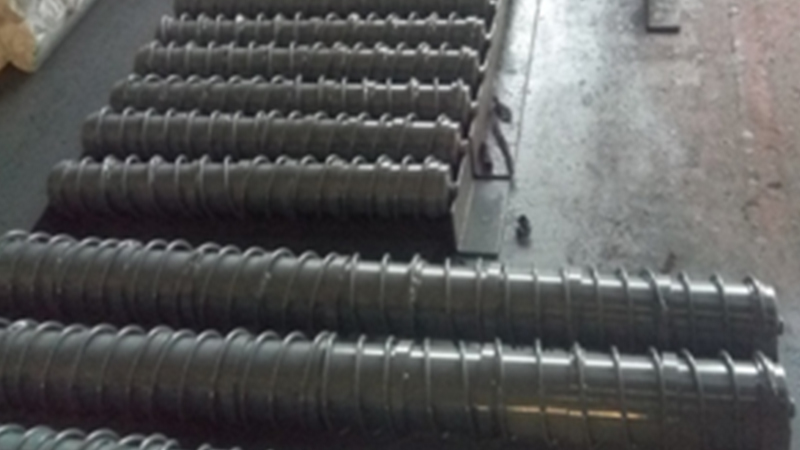

- Self-Cleaning Return Idlers
- Transition Idlers

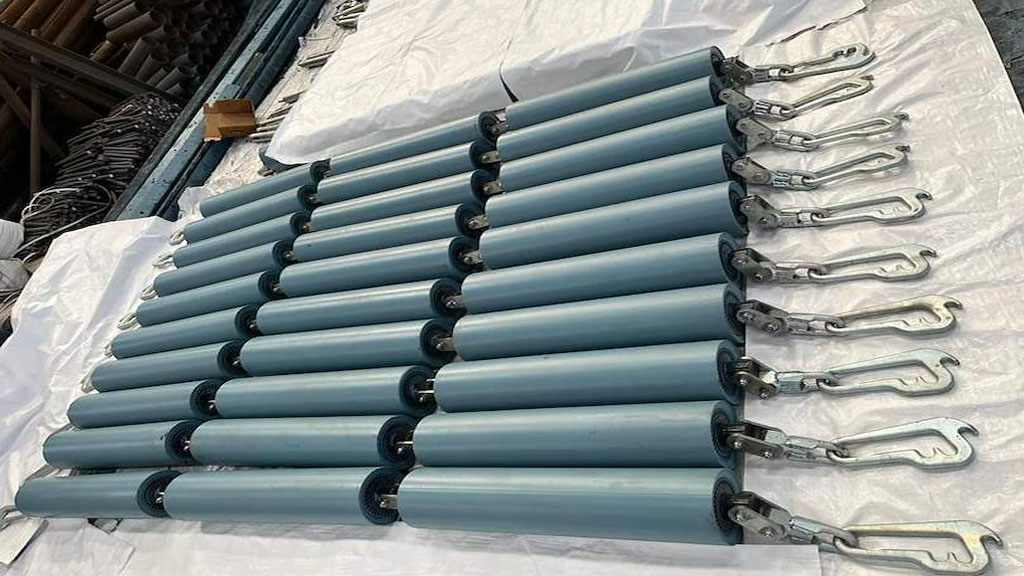

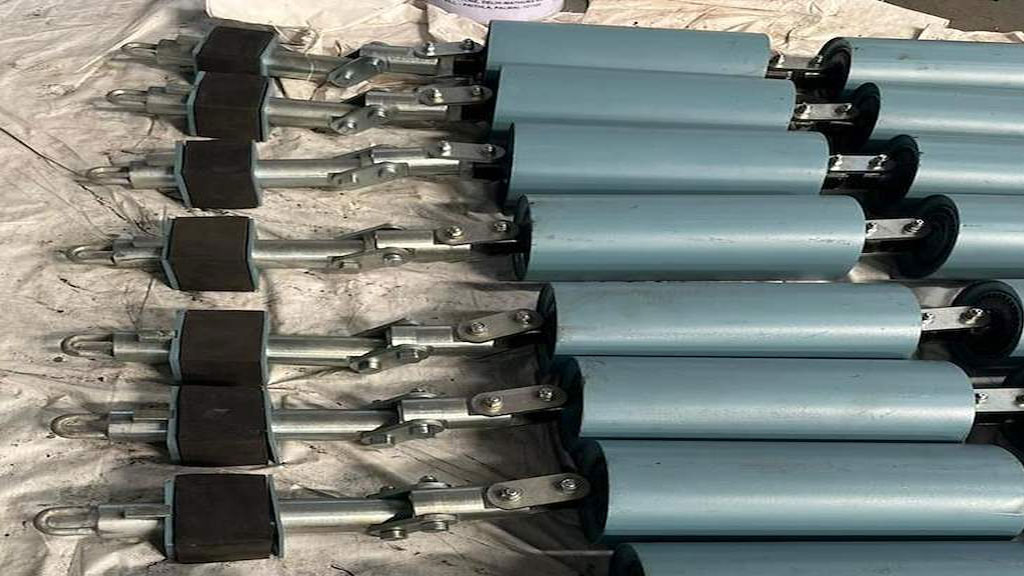

- Garland Idlers

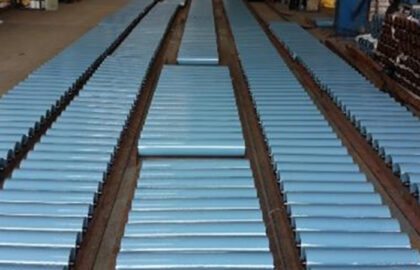

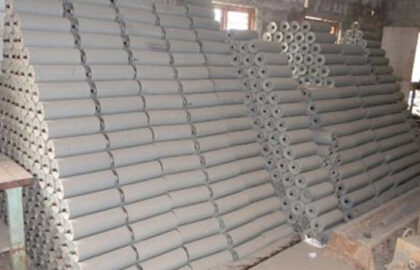

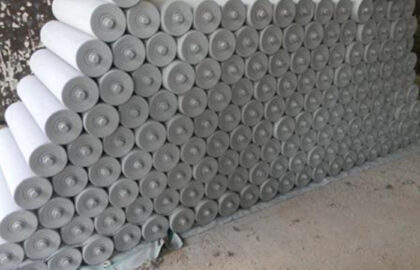

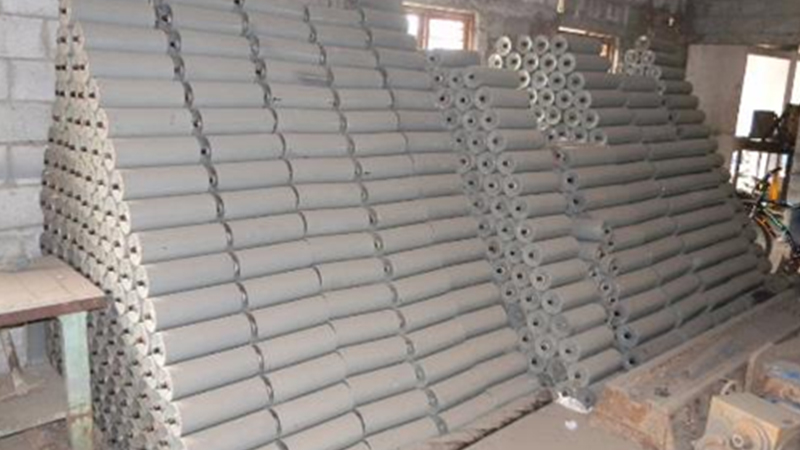

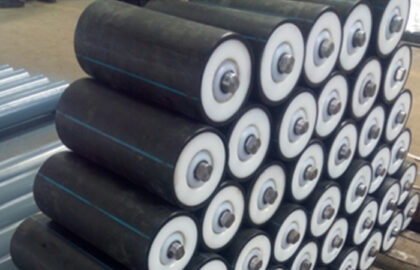

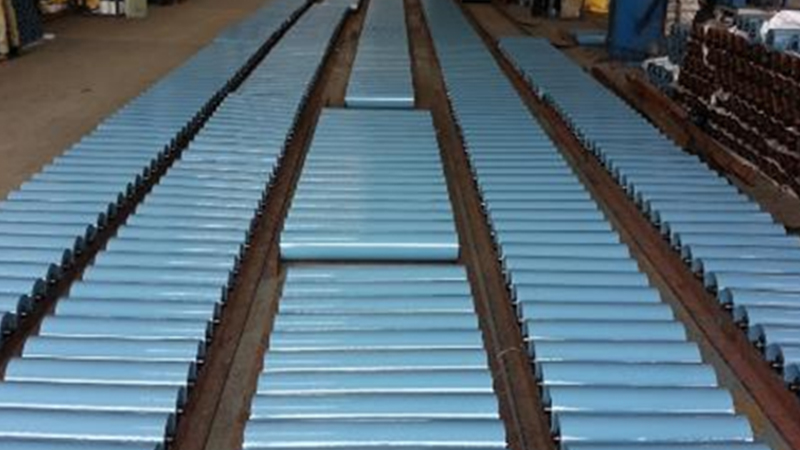

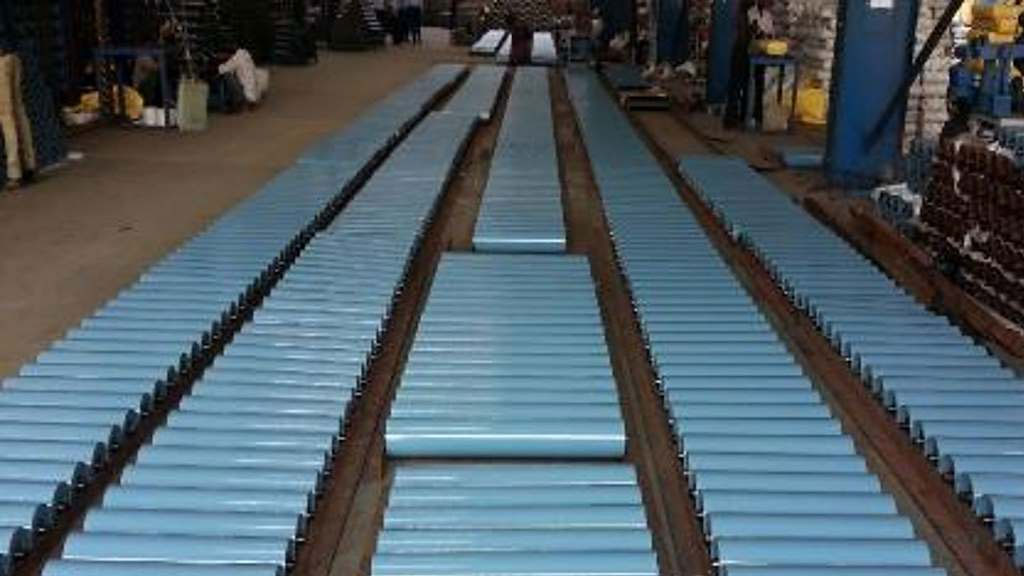

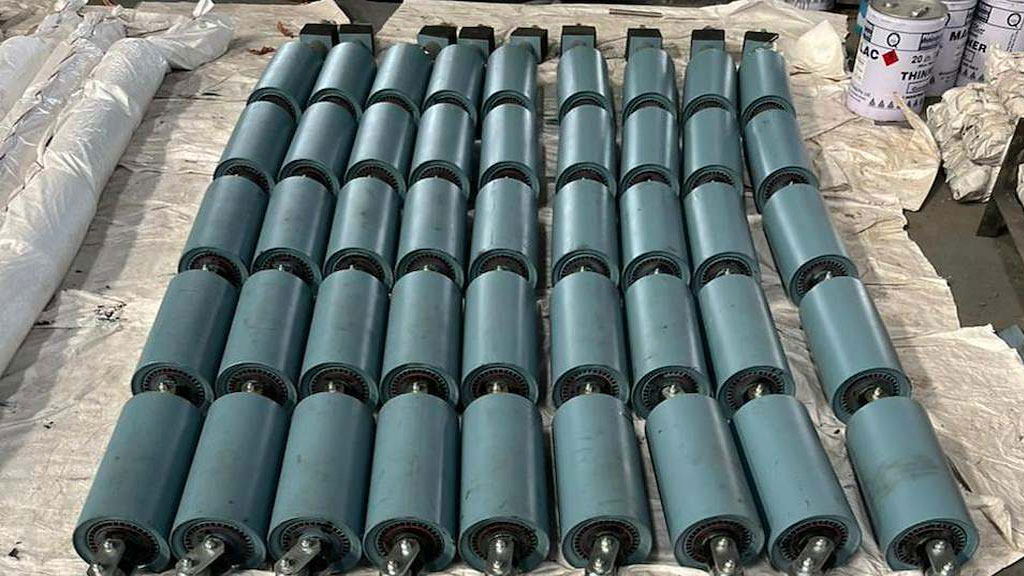

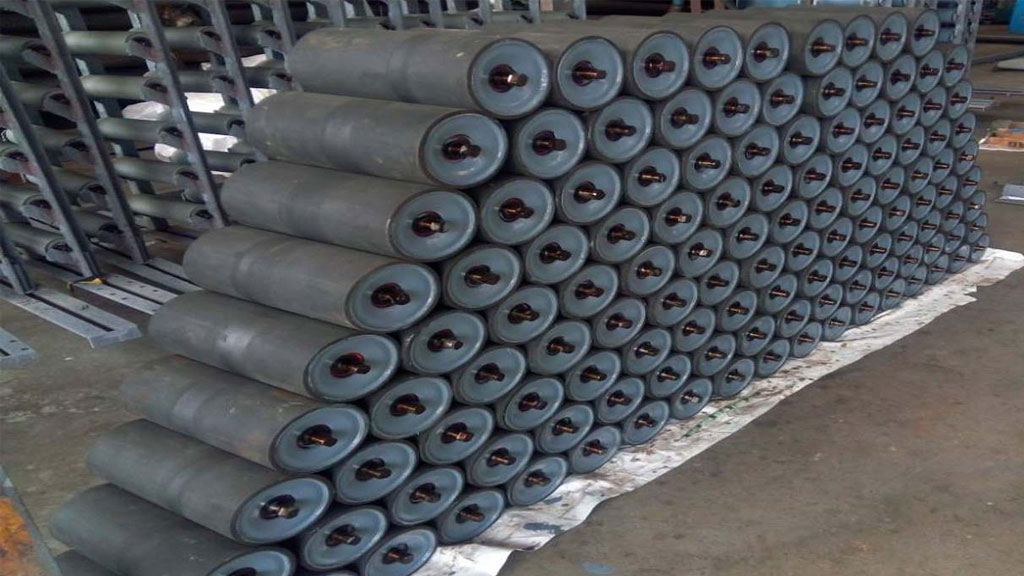

Advanced Roller Manufacturing Capability

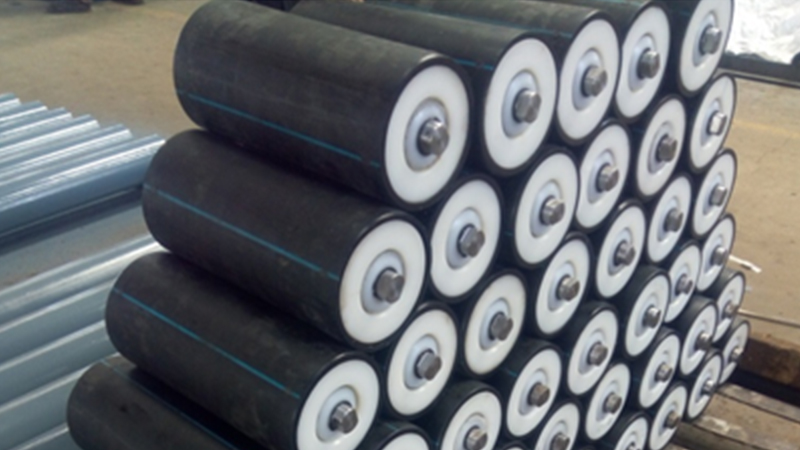

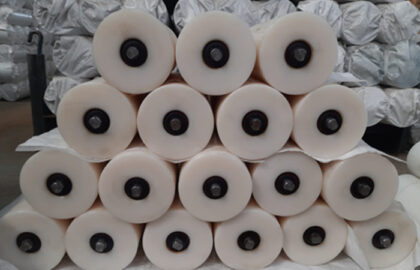

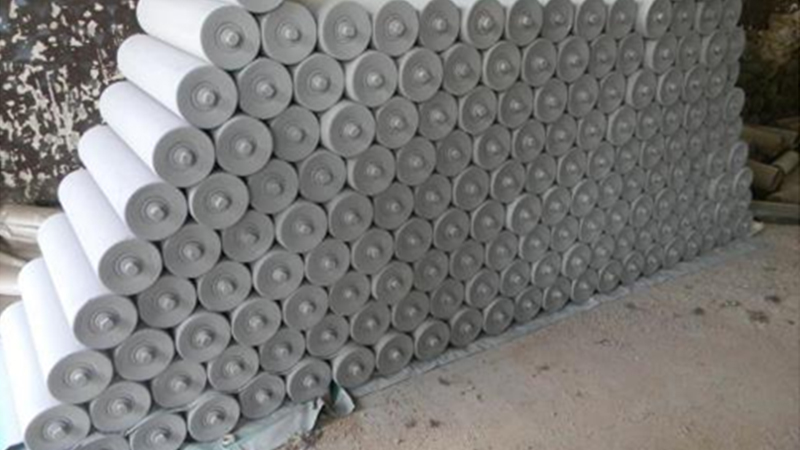

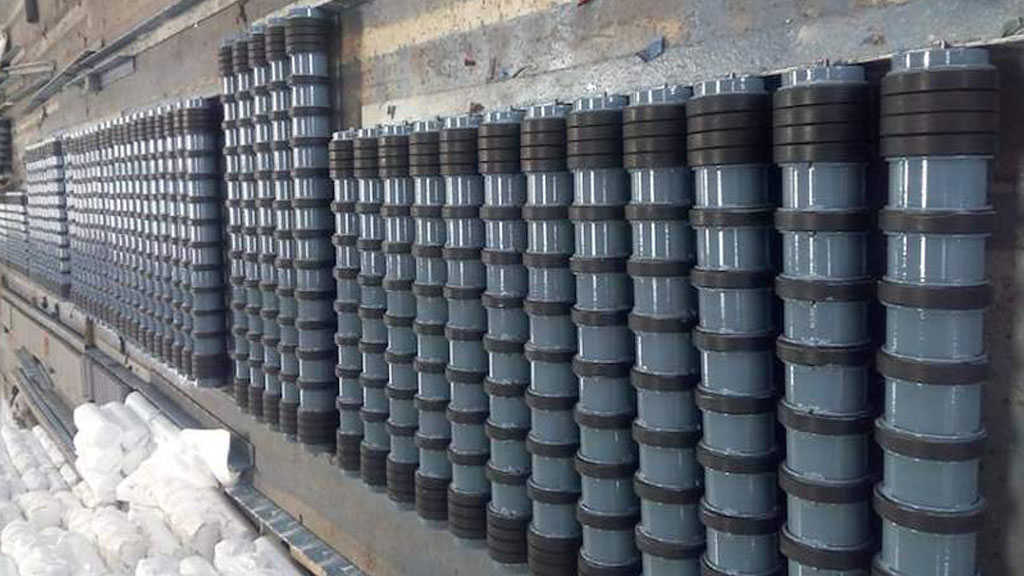

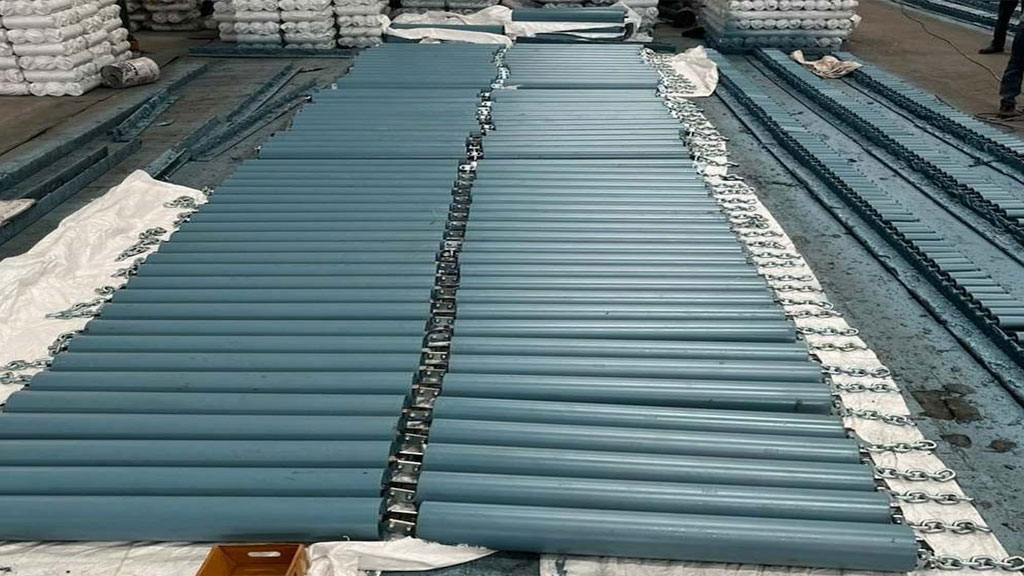

ROLLWELL manufactures conveyor rollers ranging from Ø42 mm to Ø193 mm diameter, suitable for belt widths up to 2400 mm. Our rollers are designed for high-speed and high-capacity conveyor systems operating at belt speeds up to 8 m/sec and handling capacities up to 10,000 TPH.
Engineered with precision machining and robust sealing systems, ROLLWELL Rollers ensure:
- Low rolling resistance
- Smooth and vibration-free operation
- Reduced power consumption
- Extended bearing and belt life
- Reliable performance under demanding conditions
Manufacturing Excellence & Quality Features
- Roller shells manufactured from ERW Pipes conforming to IS:9295, specially selected for conveyor applications with controlled straightness and ovality.
- Double-headed boring process ensures accurate concentricity and minimum roller run-out.
- Bearing housings manufactured from Extra Deep Drawn CRCA Sheets and machined for precise alignment.
- Genuine bearings from reputed manufacturers such as SKF and FAG are used for reliable performance.
- Advanced double labyrinth sealing system with nylon and neoprene protection ensures excellent resistance against dust and water ingress.
Performance Testing & Reliability
Every ROLLWELL Idler undergoes stringent quality checks, including:
- Continuous rotation testing after assembly
- Water and dust penetration testing through specially developed test rigs
- Dimensional accuracy and rotational performance verification
With rolling resistance as low as 0.01 compared to the standard design value of 0.03, ROLLWELL Idlers help reduce conveyor power requirements, improve energy efficiency, and enhance overall system reliability.
Engineered for performance, manufactured for reliability — ROLLWELL Conveyor Idlers and Rollers deliver dependable operation for high-capacity conveyor systems across the globe.
